Description

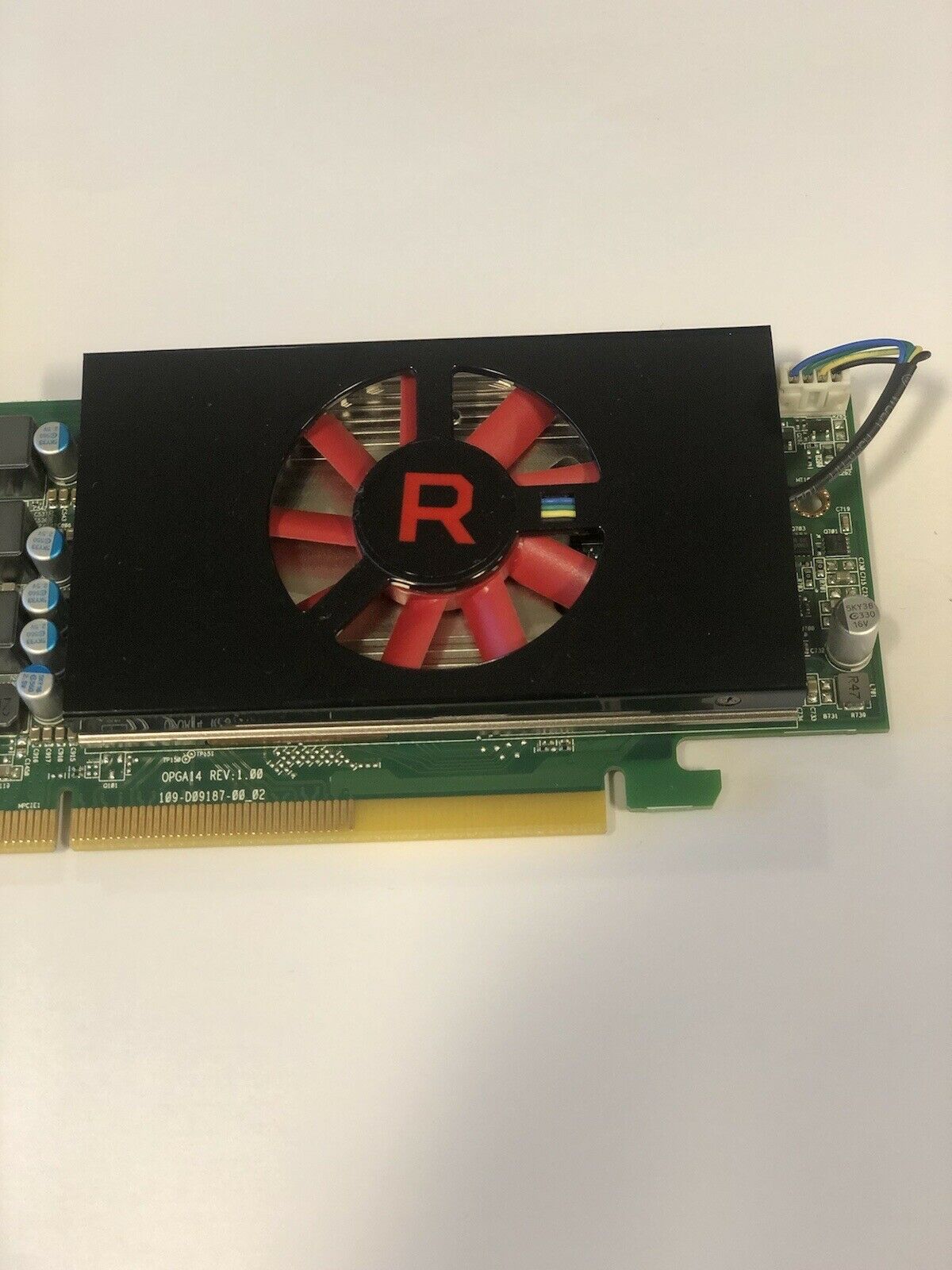

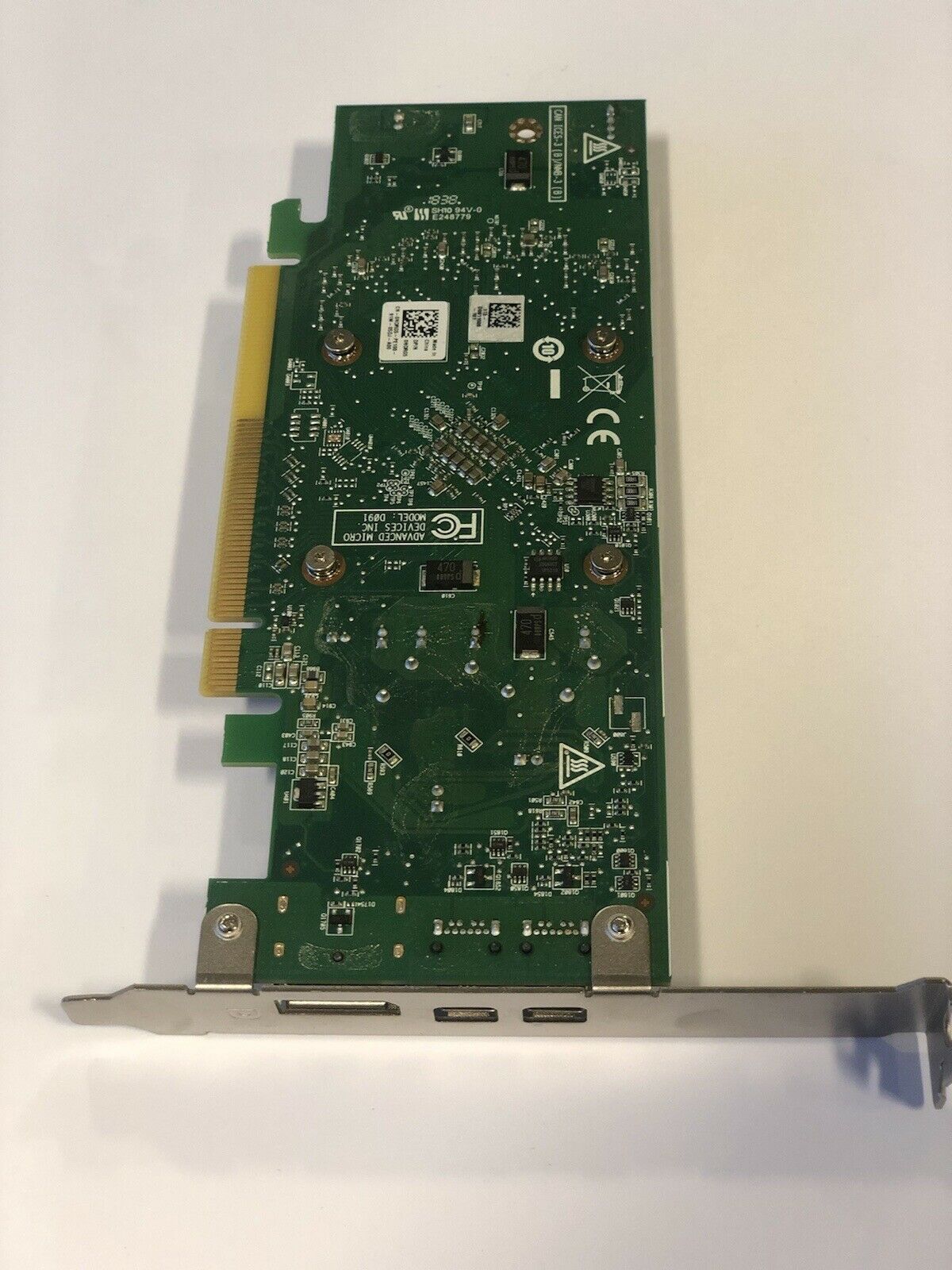

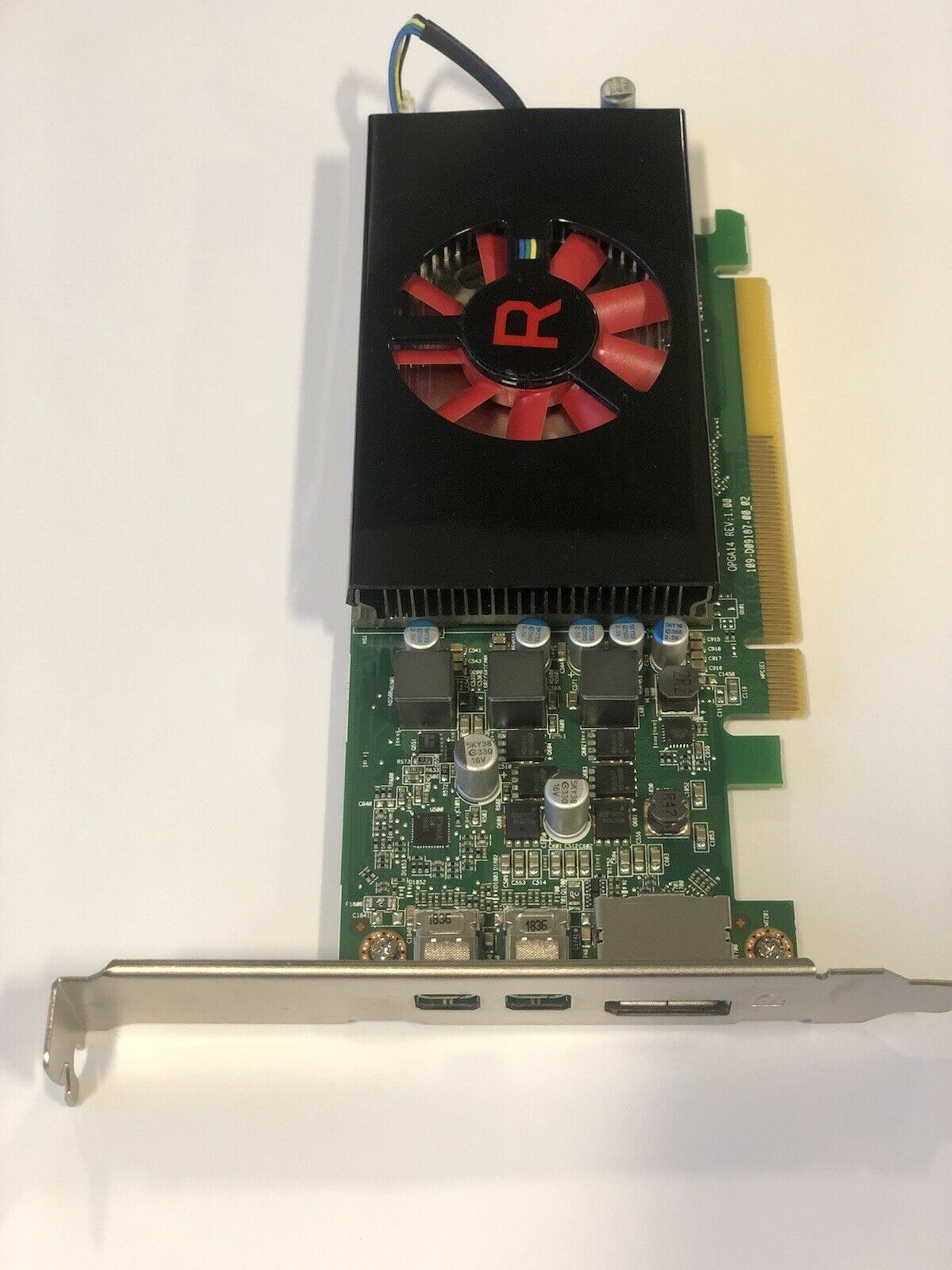

Dell Radeon RX 550 4GB Graphics Card.
Pulled from a working system. Dell OptiPlex tower.
Name / Brand / Architecture |
|
| Manufacturer: | AMD |
| Model: | Radeon RX 550 |
| Reference card?: | Yes |
| Target market segment: | Desktop |
| Die name: | Lexa XT |
| Architecture: | Graphics Core Next 4.0 |
| Fabrication process: | 14 nm |
| Transistors: | 2.2 billion |
| Bus interface: | PCI-E 3.0 x 8 |
| Launch date: | April 2017 |
| Price at launch: | $79 |
Frequency |
|
| Graphics clock: | 1100 MHz |
| Boost clock: | 1183 MHz |
Memory specifications |
|
| Memory size: | 2048 / 4096 MB |
| Memory type: | GDDR5 |
| Memory clock: | 1750 MHz |
| Memory clock (effective): | 7000 MHz |
| Memory interface width: | 128 bit |
| Memory bandwidth: | 112 GB/s |
Cores / Texture |
|
| Compute units: | 8 |
| Color ROPs: | 16 |
| Stream processors: | 512 |
| Texture units: | 32 |
| Decoders: | Adobe Flash DXVA 1.0 & 2.0 H.264 MPEG 2 (SH & HD) MPEG-4 Part 2 (DivX/Xvid) MVC (Blu-ray 3D) VC-1 WMV HD |
Electric characteristics |
|
| Maximum power draw: | 50W |
Video features |
|
| Multi-monitor: | Up to 3 displays |
| Maximum digital resolution: | 7680 x 4320 |
| Maximum DP resolution: | 7680 x 4320 |
| Maximum DVI resolution: | 2560 x 1600 |
| Maximum HDMI resolution: | 4096 x 3112 |
| HDMI: | Yes |
| HDMI version: | 2.0b |
Performance |
|
| Pixel fill rate: | 18.93 Gigapixels/s |
| Texture fill rate: | 37.86 Gigatexels/s |
| Single presision compute power: | 1211.39 GFLOPS |
External connectors |
|
| Standard display connectors: | DisplayPort 1.4 Dual-Link DVI-D HDMI |
| Audio input for HDMI: | Yes |
Dimensions |
|
| Length: | 5.7 inches (145 mm) |
| Width: | Dual-Slot |
